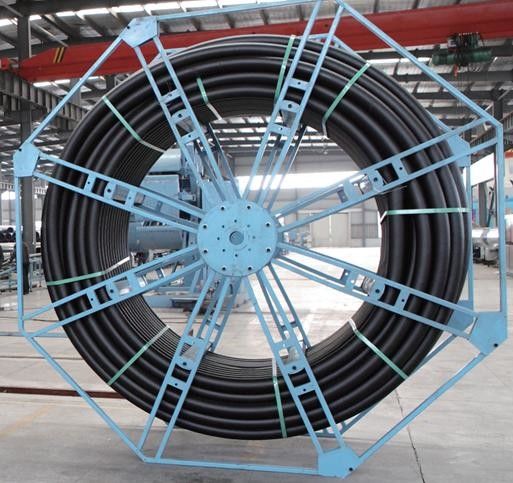

Bonded Coiled Tubing Pipe , Aluminum Underground Water Pipe 25MPa

Product Details

Place of Origin: baoji

Brand Name: TLHT

Payment & Shipping Terms

Minimum Order Quantity: 500

Payment Terms: T/T, T/T

Get Best Price
Highlight:

Bonded Coiled Tubing Pipe

,

Coiled Tubing Pipe 25MPa

,

Underground Water Pipe 25MPa

Pipe Specification:
1.6 "-3"
Nominal Pressure:
2.5MPa-25MPa
Temperature:
-40 To 90 ℃
Executive Standard:
SY/T 6662.2-2020
Pipe Specification:
1.6 "-3"
Nominal Pressure:
2.5MPa-25MPa
Temperature:
-40 To 90 ℃
Executive Standard:
SY/T 6662.2-2020
Bonded Coiled Tubing Pipe , Aluminum Underground Water Pipe 25MPa

                Bonded coiled tubing for underground use (injection well tubing)


Bonded continuous tubing for underground use is designed to address the severe corrosion of oil and water well tubing in oil fields, and other non-metallic tubing cannot meet the challenges of high temperature, high pressure, and high axial tension in the underground.


The bonded continuous tubing used underground has overall resistance to high internal and external pressure, high temperature resistance, strong axial tension, strong corrosion resistance, no scaling, no wax formation, high construction efficiency, and long service life, which effectively solves the problem of water injection well strings.


Structure and performance


Inner layer: Molecular materials (PE100, PE-RT (XRT70), PEX (Bridge S1), UHMW-PE (Yanshan Petrochemical 2.5 million), PA11/12, PVDF (90165)).


Reinforcement layer: high-strength non-metallic fibers such as polyester filament, carbon fiber filament, aramid prepreg tape, glass fiber prepreg tape, etc


Outer layer: PE polymer material


Pipe specification: 1.6 "-3"


Nominal pressure: 2.5MPa-25MPa


Medium temperature: -40 to 90 ℃
