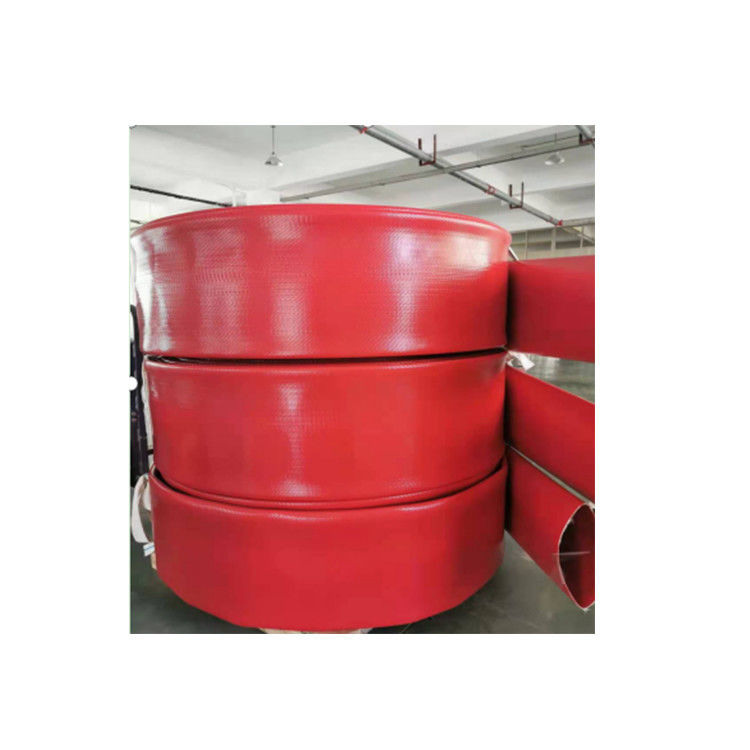

Abrasion Proof Reinforced Polyurethane Hose , Urethane Lined Pipe 6mm Thickness

Product Details

Place of Origin: Shaanxi, China

Model Number: Guest custom-3

Payment & Shipping Terms

Minimum Order Quantity: 500 meters

Price: $0.20/meters >=500 meters

Supply Ability: 50000 Meter/Meters per Month

Get Best Price
Highlight:

Abrasion Proof Reinforced Polyurethane Hose

,

Reinforced Polyurethane Hose 6mm

,

Urethane Lined Pipe 6mm

Material:
PVC
Thickness:
6mm
Port:
Tianjin Port
Material:
PVC
Thickness:
6mm
Port:
Tianjin Port
Abrasion Proof Reinforced Polyurethane Hose , Urethane Lined Pipe 6mm Thickness
Product Paramenters
Abrasion Proof Reinforced Polyurethane Hose , Urethane Lined Pipe 6mm Thickness 0
Nominal outer diameter dn
Minimum wall thickness emin
Wall thickness deviation (mm)
Nominal pressure (MPa)
Longitudinal pull force (kN)
65
4.0
+0.3
0
4.0
30.0



6.0
45.0
80
4.0
+0.3
0
4.0
46.0



6.0
69.0
100
4.0
+0.3
0
4.0
76.0



6.0
114.0
150
4.0
+0.5
0
4.0
179.0



6.0
273.0
200
4.0
+0.5
0
2.0
166.0



4.0
329.0
250
4.0
+0.5
0
2.0
264.0



4.0
524.0
300
4.0
+0.5
0
2.0
388.0



4.0
770.0
350
4.5
+0.8
0
2.0
532.0



3.0
798.0
400
4.5
+0.8
0
2.0
698.0



3.0
1053.0
500
5.5
+0.8
0
1.0
551.0

6.0

2.0
1094.0
600
6.0
+1.0
0
1.0
798.0

6.5

1.5
1197.0
800
6.0
+1.0
0
0.5
718.0

7.0

1.0
1428.0
Products Description
Abrasion Proof Reinforced Polyurethane Hose , Urethane Lined Pipe 6mm Thickness 1
Abrasion Proof Reinforced Polyurethane Hose , Urethane Lined Pipe 6mm Thickness 2
(1) Structure and performance
The tube is made of high strength polyester or aramid braided with TPU polyurethane in a single extrusion molding. It is composed
of an internal coating, a seamless woven reinforcement layer (single or double layer) of aramid fiber reinforced material, and an
external coating to protect the fabric. The internal coating varies according to the substance the pipe is carrying :APE compounds
for water, modified TPU for gas, and TPU oil resistant linings for oil. The outer coating is made of wear-resistant PE polyethylene material.
Pipe specification: Φ131-459mm
Nominal pressure: 1.5Mpa - 7.1Mpa Medium temperature: -46 to 80℃
Layout method: buried or ground laying
Length: standard length of 20m, 50m, 100m, 200m, the maximum installation length of 2000m, the maximum length of each reel of 4500m, depending on the size of the diameter.
Connection mode: self-locking interface. The connection between the tube end of the lining hose and the steel pipe in trenchless pipeline repair works should adopt the connection mode of flange change-over joint, and the connection mode of steel wrapping in
the middle of the pipeline should be adopted Execution standard: T/CSTM XXXX-2020 steel pipe lining with pressure composite hose and construction technical specifications
(2) Scope of application
Mainly used in petroleum, chemical, shipping, agriculture, water conservancy, mining, fire, municipal, flood control and other f
ields, in oil fields and municipal construction, commonly used as drinking water, thermal water, sewage, sea water transmission pipeline. It is widely used as crude oil, sewage and clean water pipelines for temporary or emergency rescue, and is also widelyused as interpenetrating repair lining pipes in trenchless pipeline repair projects.
(3) Performance characteristics
Has a large aperture, light weight, high pressure resistance, high temperature resistant, corrosion resistant, continuity, large diameter, impact resistance, tensile, abrasion resistance, antistatic, ageing resistance, long life, light weight, easy to winding, easy operation, fast transmitter, repeated use, high transmission efficiency, small fluid resistance, low temperature environment is not going to happen to harden and crack, etc.
inner diameter

design pressure
weight
wall thickness
tensile strength
inch
mm
mpa
kg/m
mm
kg
6
150+2.0
2.1
3.2
6
31000


3.6
2.9
5.3
56000


4.2
3.1
5.5
63000
8
203+3.0
1.4
3.5
4.5
37000


3.6
3.8
5.5
75000
10
254+4.0
1.4
4.5
4.8
45400


3.6
5.0
5.7
94000
12
305+5.0
1.0
4.8
4.9
55000
Abrasion Proof Reinforced Polyurethane Hose , Urethane Lined Pipe 6mm Thickness 3
