RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness

Product Details

Place of Origin: Shanxi, China

Brand Name: tianlianhuitong

Model Number: Guest custom-3

Payment & Shipping Terms

Minimum Order Quantity: 500 meters

Price: $0.20/meters >=500 meters

Supply Ability: 50000 Meter/Meters per Month

Get Best Price
Highlight:

RTP Thermoplastic Polyurethane Hose

,

Thermoplastic Polyurethane Hose 6mm

,

Polyurethane Lined Pipe 6mm

Material:
PE
Specification:
131-459mm
Length:
Custom Made
Thickness:
6mm
Standard:
T/CSTM XXXX-2020
Processing Service:
Moulding, Cutting
Medium Temperature:
-46 To 80℃
Color:
Red
Nominal Pressure:
1.5mpa-7.1mpa
Port:
Tianjin Port
Material:
PE
Specification:
131-459mm
Length:
Custom Made
Thickness:
6mm
Standard:
T/CSTM XXXX-2020
Processing Service:
Moulding, Cutting
Medium Temperature:
-46 To 80℃
Color:
Red
Nominal Pressure:
1.5mpa-7.1mpa
Port:
Tianjin Port
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness
P
Well known for its fine quality polyurethane hose
product Paramenters
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 0
Nominal outer diameter dn
Minimum wall thickness emin
Wall thickness deviation (mm)
Nominal pressure (MPa)
Longitudinal pull force (kN)
65
4.0
+0.3
0
4.0
30.0



6.0
45.0
80
4.0
+0.3
0
4.0
46.0



6.0
69.0
100
4.0
+0.3
0
4.0
76.0



6.0
114.0
150
4.0
+0.5
0
4.0
179.0



6.0
273.0
200
4.0
+0.5
0
2.0
166.0



4.0
329.0
250
4.0
+0.5
0
2.0
264.0



4.0
524.0
300
4.0
+0.5
0
2.0
388.0



4.0
770.0
350
4.5
+0.8
0
2.0
532.0



3.0
798.0
400
4.5
+0.8
0
2.0
698.0



3.0
1053.0
500
5.5
+0.8
0
1.0
551.0

6.0

2.0
1094.0
600
6.0
+1.0
0
1.0
798.0

6.5

1.5
1197.0
800
6.0
+1.0
0
0.5
718.0

7.0

1.0
1428.0
Products Description
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 1
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 2
(1) Structure and performance

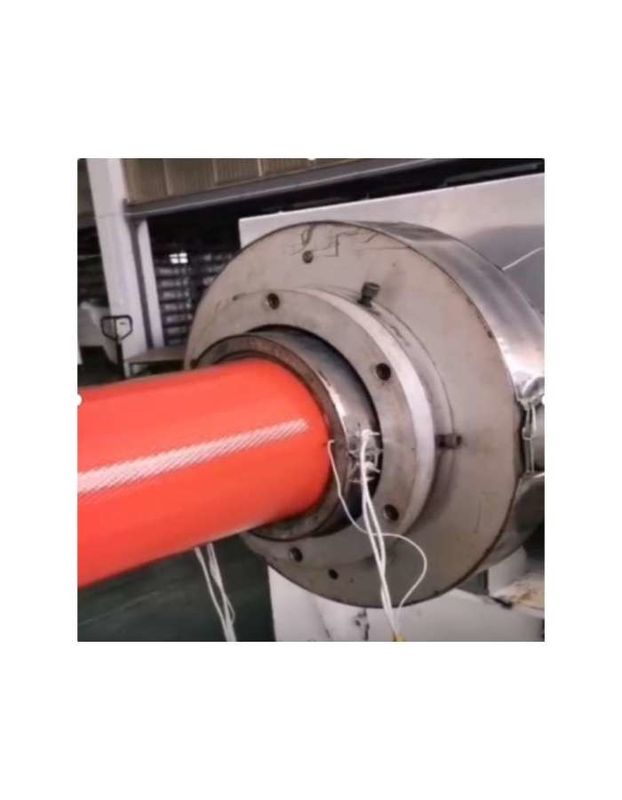

The tube is made of high strength polyester or aramid braided with TPU polyurethane in a single extrusion molding. It is composed
of an internal coating, a seamless woven reinforcement layer (single or double layer) of aramid fiber reinforced material, and an
external coating to protect the fabric. The internal coating varies according to the substance the pipe is carrying :APE compounds
for water, modified TPU for gas, and TPU oil resistant linings for oil. The outer coating is made of wear-resistant PE polyethylene material.
Pipe specification: Φ131-459mm
Nominal pressure: 1.5Mpa - 7.1Mpa Medium temperature: -46 to 80℃
Layout method: buried or ground laying
Length: standard length of 20m, 50m, 100m, 200m, the maximum installation length of 2000m, the maximum length of each reel of 4500m, depending on the size of the diameter.
Connection mode: self-locking interface. The connection between the tube end of the lining hose and the steel pipe in trenchless pipeline repair works should adopt the connection mode of flange change-over joint, and the connection mode of steel wrapping in
the middle of the pipeline should be adopted Execution standard: T/CSTM XXXX-2020 steel pipe lining with pressure composite hose and construction technical specifications
(2) Scope of application
Mainly used in petroleum, chemical, shipping, agriculture, water conservancy, mining, fire, municipal, flood control and other f
ields, in oil fields and municipal construction, commonly used as drinking water, thermal water, sewage, sea water transmission pipeline. It is widely used as crude oil, sewage and clean water pipelines for temporary or emergency rescue, and is also widelyused as interpenetrating repair lining pipes in trenchless pipeline repair projects.
(3) Performance characteristics
Has a large aperture, light weight, high pressure resistance, high temperature resistant, corrosion resistant, continuity, large diameter, impact resistance, tensile, abrasion resistance, antistatic, ageing resistance, long life, light weight, easy to winding, easy operation, fast transmitter, repeated use, high transmission efficiency, small fluid resistance, low temperature environment is not going to happen to harden and crack, etc.
inner diameter

design pressure
weight
wall thickness
tensile strength
inch
mm
mpa
kg/m
mm
kg
6
150+2.0
2.1
3.2
6
31000


3.6
2.9
5.3
56000


4.2
3.1
5.5
63000
8
203+3.0
1.4
3.5
4.5
37000


3.6
3.8
5.5
75000
10
254+4.0
1.4
4.5
4.8
45400


3.6
5.0
5.7
94000
12
305+5.0
1.0
4.8
4.9
55000
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 3
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 4
Company Profile
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 5
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 6
Title goes here.
Baoji TIANLIAN Huitong composite material Co., Ltd. is located in the high tech Zone of Baoji City, Shaanxi Province. It is a national high tech enterprise, a gazelle enterprise in Baoji City, a small giant enterprise specialized in special new products in Shaanxi Province, and a "little giant" enterprise specialized in special new products by the Ministry of industry and information technology of the people's Republic of China. The company has long cooperated with many scientific research institutions such as PetroChina Xi'an pipe material institute, 43 Institutes of aerospace, Chang'an University, Xi'an University of petroleum, Dalian University of technology, etc. to jointly carry out the research and development of non-metallic composite material technology, polymer modified materials and supporting equipment. The products have 21 composite pipe technology patents, Among them, the technology of continuous composite pipe with non-metallic joint fills the gap in China. At present, the company has obtained A-class special pressure pipe component manufacturing license, and has passed API 15s Qi certification, ISO9001 certification, 14001 certification and 18001 certification. It is an AAA credit rating enterprise and a contract abiding enterprise. PetroChina grade a suppliers, Sinopec network suppliers, Zhenhua oil cooperation suppliers. The company's core products mainly include flexible composite plastic high-pressure transmission pipe, reinforced ultra-high polymer continuous composite pipe, ultra-high polymer lined oil pipe, high temperature resistant continuous composite pipe, high barrier natural gas high-pressure flexible composite pipe, special bonded solid wall continuous composite pipe for oil and gas field, special flexible composite pipe for shale gas / natural gas transmission (acid gas field, gas field) There are 21 composite pipe technology patents for underground bonded solid wall coiled tubing, coal mine fiber reinforced polyethylene liquid pipe, polyurethane hose, etc. Products are suitable for petroleum, chemical, mining, municipal, thermal, fire and other fields. At present, in Changqing, Yanchang, Tuha, Qinghai, Zhongyuan, Shengli, Tarim, Northwest Bureau, Karamay, southwest oil and gas field, Sichuan shale gas, Shenhua coalbed methane and other oil and gas fields, Zoomlion coal, Asian AmericanContinental coalbed methane, orean coalbed methane, Changning shale gas, Sichuan shale gas of great walldrilling, Chuanqing drilling shale gas, Ningxia Coal Geological Bureau, EBS oilfield of Iraq It has been widely used in aktobin oilfield of Kazak.
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 7
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 8
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 9
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 10
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 11
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 12
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 13
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 14
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 15
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 16
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 17
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 18
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 19
Plant and Workshop
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 20
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 21
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 22
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 23
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 24
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 25
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 26
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 27
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 28
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 29
exhibition
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 30
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 31
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 32
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 33
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 34
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 35
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 36
Customer visit chart
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 37
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 38
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 39
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 40
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 41
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 42
Tarim oilfield
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 43
northwest bureau
Product packaging
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 44
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 45
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 46
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 47
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 48
FAQ
RTP Thermoplastic Polyurethane Hose , Polyurethane Lined Pipe 6mm Thickness 49
1.What's your advantage? A: Honest business with competitive price and professional service on export process. 2. How I believe you? A : We consider honest as the life of our company, Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed. 3.Can you give warranty of your products? A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service. 4.Where are you? Can I visit you? A: Sure,welcome to you visit our factory at any time. 5.How about the delivery time? A: Within 35-45 days after we confirm you requirement. 6.What kind of payment does your company support? A: T/T, 100% L/C at sight, Cash are all accepted if you have other payment,please contact me.
