Light Weight Mining Composite Pipe Tubing Fiber Reinforced Flexible Polyethylene

Product Details

Place of Origin: Shanxi, China

Brand Name: tianlianhuitong

Model Number: Guest custom-2

Payment & Shipping Terms

Minimum Order Quantity: 500 meters

Price: $0.20/meters >=500 meters

Supply Ability: 50000 Meter/Meters per Month

Get Best Price
Highlight:

Light Weight Mining Composite Pipe

,

Fiber Reinforced Mining Composite Pipe

,

Fiber Reinforced Flexible Polyethylene Tubing

Material:
PE/PVC
Specification:
DN42-DN1200
Length:
5.8/PC 11.8/PC
Thickness:
6mm
Standard:
MT/T558.1-2005
Processing Service:
Moulding, Cutting
Medium Temperature:
-40 To 90℃
Size:
Customization
Specifications Models:
FRPE-KML2.0/63
Color:
Black
Packing:
Pony Roll
Port:
Tianjin Port
Material:
PE/PVC
Specification:
DN42-DN1200
Length:
5.8/PC 11.8/PC
Thickness:
6mm
Standard:
MT/T558.1-2005
Processing Service:
Moulding, Cutting
Medium Temperature:
-40 To 90℃
Size:
Customization
Specifications Models:
FRPE-KML2.0/63
Color:
Black
Packing:
Pony Roll
Port:
Tianjin Port
Light Weight Mining Composite Pipe Tubing Fiber Reinforced Flexible Polyethylene
Product Paramenters
Light Weight Mining Composite Pipe Tubing Fiber Reinforced Flexible Polyethylene 0
Light Weight Mining Composite Pipe Tubing Fiber Reinforced Flexible Polyethylene 1
Light Weight Mining Composite Pipe Tubing Fiber Reinforced Flexible Polyethylene 2
Light Weight Mining Composite Pipe Tubing Fiber Reinforced Flexible Polyethylene 3
Light Weight Mining Composite Pipe Tubing Fiber Reinforced Flexible Polyethylene 4
Products Description
Light Weight Mining Composite Pipe Tubing Fiber Reinforced Flexible Polyethylene 5
Light Weight Mining Composite Pipe Tubing Fiber Reinforced Flexible Polyethylene 6
Title goes here.

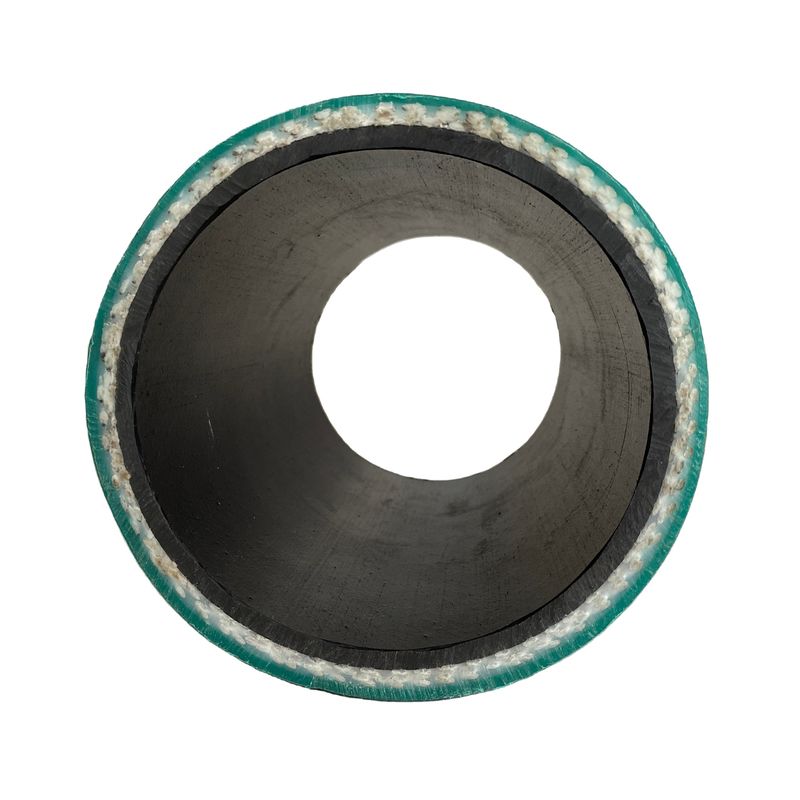

(1) Structure and performance
Inner and outer layer: anti-static, anti-flame retardant polymer material.
Reinforcement layer: flame retardant high strength industrial polyester filament, glass fiber prepreg tape Pipe specification: DN63mm-250mm Nominal pressure: 1.6Mpa - 4.0Mpa Medium temperature: -40 to 90℃
Execution standard: MT/T558.1-2005 Plastic pipes for underground use in coal mines - Part 1: Polyethylene pipes CJ/T189-2007 steel wire mesh skeleton plastic (polyethylene) composite pipe and pipe fittings Q/TLHT001-2020 Fiber-reinforced polyethylene liquid pipe for coal mine
(2) Scope of application
It is mainly used for underground water supply and drainage, ventilation, shotcrete, gas extraction and so on.The performance characteristics of
① light weight, long life, quick construction
The same pressure grade of fiber-reinforced polyethylene liquid pipe for coal mine is important for metal pipe 1/7, FRP 1/2, other flexible pipe 2/3. The material is not easy to decompose and aging, and the service life is more than 20 years. The service life is 8-10 times of steel pipe.
② Internal corrosion, high pressure resistance, good mechanical properties
Fiber reinforced polyethylene liquid pipe for coal mine has strong acid and alkali corrosion resistance, excellent mechanical properties, pipeline strength, rigidity, impact resistance, high pressure resistance and other properties far beyond other plastics, PE and glass fiber reinforced plastic pipe.
The inner wall is smooth and the conveying noise is low
The inner wall of the pipeline is smooth, the surface roughness is only 0.01mm, and the surface roughness of the steel pipe is 2.3mm. According to the hydraulic calculation done by the authority, the transportation rate is 30%-38% higher than that of the steel pipe, and the circulation efficiency is higher. Fluid flow noise is low.

④ Good flame retardant and antistatic performance
External materials can be added flame retardant materials, flame retardant, antistatic properties are in line with national standards, suitable for specific flammable and explosive places
⑤ good wear resistance
The wear resistance is 2.3 times that of PE and 4-7 times that of carbon steel.
The installation is simple and the construction efficiency is high
With a variety of special metal and non-metal joint, the use of non-metal joint completely eliminate the joint corrosion problem,easy and fast installation, low construction cost, compared with FRP installation efficiency is 50% higher, the installation cost is reduced by about 30%. The comprehensive economic benefit is low, which is 8-15 times that of steel pipe.


Comparison of existing technical schemes for coal mine pipelines


numerical order
existing technology
contrastive analysis
1
Polyethylene pipes for underground coal mines
Applicable caliber range is large, but the pressure is relatively small, generally the highest 1.6Mpa, the price of the same
specification model is lower.
2
Steel mesh skeleton polyethylene pipe used in underground coal mine
Applicable caliber range is large, but the applicable pressure is small, DN200 up to 2.5MPa. The same specification model is the highest price.
3
Fiber-reinforced polyethylene liquid pipes for coal mines
Applicable caliber range is large, the pressure is high, up to 4Mpa, the use of non-metal or metal withholding joint, according to the working conditions, the pipeline can be fixed length, can coil, construction is convenient and fast. Best value for money
