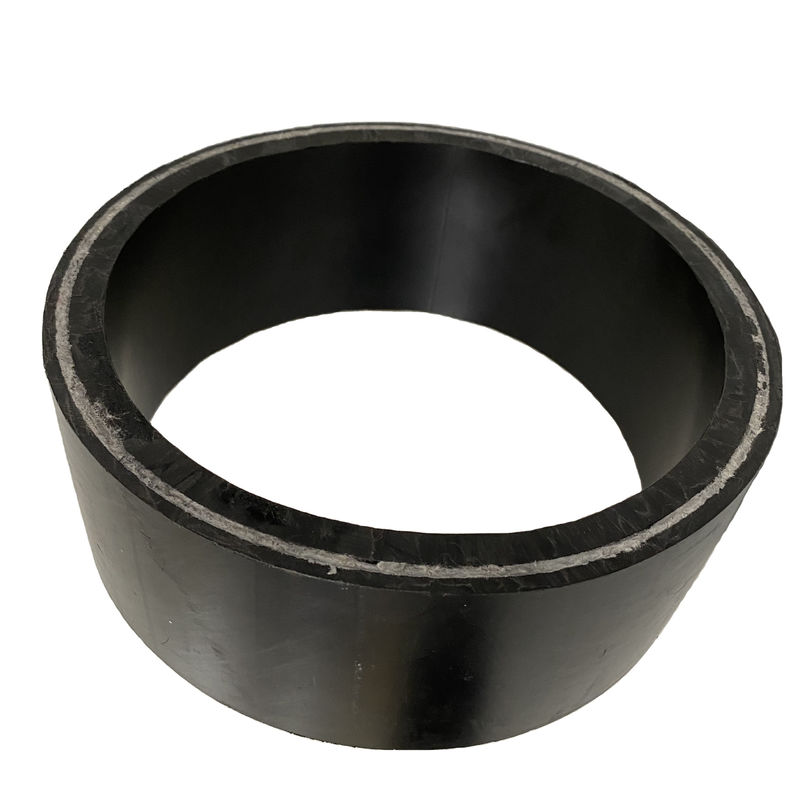

Corrosion Resistant Large Diameter Flexible Pipe , UHMW Polyethylene Tube DN42

Product Details

Place of Origin: Shaanxi, China

Brand Name: tianlianhuitong

Model Number: Guest custom-4

Payment & Shipping Terms

Minimum Order Quantity: 500 meters

Price: $0.20/meters >=500 meters

Supply Ability: 50000 Meter/Meters per Month

Get Best Price
Highlight:

Corrosion Resistant Large Diameter Flexible Pipe

,

Large Diameter Flexible Pipe DN42

,

UHMW Polyethylene Tube DN42

Material:
PVC/PE
Specification:
DN42-DN1200
Length:
5.8/PC 11.8/PC
Thickness:
6mm
Standard:
SY/T6662.5-2014
Processing Service:
Moulding, Cutting
Tensile Property:
≥3.0(TLR)
Colour:
Black
Lnside Dimension:
≥17
1000h Survival Test:
65 C Without Break
Port:
Tianjin Port
Material:
PVC/PE
Specification:
DN42-DN1200
Length:
5.8/PC 11.8/PC
Thickness:
6mm
Standard:
SY/T6662.5-2014
Processing Service:
Moulding, Cutting
Tensile Property:
≥3.0(TLR)
Colour:
Black
Lnside Dimension:
≥17
1000h Survival Test:
65 C Without Break
Port:
Tianjin Port
Corrosion Resistant Large Diameter Flexible Pipe , UHMW Polyethylene Tube DN42
Product Paramenters
Corrosion Resistant Large Diameter Flexible Pipe , UHMW Polyethylene Tube DN42 0
spec
bore size
Average outer diameter
minimum wall thickness
Wall thickness tolerance
nominal pressure

mm
mm
mm
mm
MPa
1. 5in
40
60
10.0
+ 0. 5
0
2. 5


62
11. 0

6. 3


65
12. 5

12. 5


67
13. 5

16. 0


69
14. 5

20. 0


70
15. 0

25. 0


73
16. 5

28.0


78
19.0

32. 0
2in
50
67
8. 5

2. 5


69
9. 5

6. 3


74
12. 0

12. 5


75
12. 5

16. 0


78
14. 0

20. 0
2in
50
79
14. 5
+ 0. 5
0
25. 0


80
15.0

28. 0


82
16.0

32. 0
2. 5in
65
90
12. 5
+ 0. 6
0
2. 5


92
13. 5

6. 3


95
15.0

12. 5


97
16.0

16. 0


98
16. 5

20. 0


99
17.0

25. 0
3in
75
94
9. 5

2. 5


96
10. 5

6. 3


101
13.0

12. 5


107
16.0

16. 0


111
18.0

20. 0


112
18. 5

25. 0
4in
102
122
10.0
+ 0. 6
0
2. 5


125
11.5

4.0


128
13.0

6. 3


131
14. 5

10.0


132
15.0

12. 5


136
17.0

18. 0
5in
125
152
13. 5
0.7
0
2. 5


153
14.0

4. 0


154
14. 5

6. 3


158
16. 5

10.0


160
17. 5

12. 5
6in
150
178
14.0
+ 0. 8
0
6. 3


180
15.0

8. 0


185
17. 5

10.0
Products Description
Corrosion Resistant Large Diameter Flexible Pipe , UHMW Polyethylene Tube DN42 1
Corrosion Resistant Large Diameter Flexible Pipe , UHMW Polyethylene Tube DN42 2
Title goes here.
Inner layer: ultra high molecular material (PE100, PE-RT(XRT70), PEX (Lianqiao S1) UHMW-PE(Yanshan Petrochemical 2.5 million),
PA11/12, PVDF (90165))
Interlayer: High strength non-metallic fibers
Cover: PE polymer material
Pipe specification: DN40mm-250mm
Nominal pressure: 2.5Mpa - 32Mpa
Medium temperature: ≤80℃
Execution standard: SY/T 6662.5-2014
2) Scope of application
It is mainly used in oil and gas field gathering and transportation pipeline, high pressure alcohol injection pipeline, water
injection pipeline, sewage transmission pipeline, shale gas centralized water supply pipeline, fracturing flowback fluid recovery
and utilization pipeline, coal-bed methane transportation, brine transportation, chemical pipeline, hot spring water transportation, etc.
(3) Performance characteristics
① Strong wear resistance
Its wear resistance is 2.3 times that of PE and 4-7 times that of carbon steel. It is suitable for medium conveying with high sediment content, such as heavy oil pipeline, sewage conveying pipeline and slurry conveying pipeline, etc.
② smooth and no scaling
Small roughness, smooth surface, small friction coefficient, friction coefficient of 0.05~0.10 under water and oil lubrication,
not easy to scale, suitable for high salinity, high wax heavy oil transportation, sewage transportation, water injection pipeline, etc.
Extremely high impact resistance
The impact strength of the pipe is more than 120kJ /m2, which is 10 times that of high-density polyethylene. The impact strength of the pipe is the highest among the existing plastics, and it still has quite high impact strength even at -70℃.
④ medium compatibility is good
Ultra-high molecular weight polyethylene is a kind of saturated molecular group structure, chemical stability, its water
absorption rate is the least in the engineering plastics, so it has good oil, gas, water medium compatibility performance, as well as good oil and gas swelling resistance.
Excellent corrosion resistance
In addition to a few strong acid at high temperature has a slight corrosion, in the concentration of less than 80% of concentrated
hydrochloric acid, concentration of less than 75% of sulfuric acid, concentration of less than 20% of nitric acid performance is quite stable.
Long aging resistance life
Anti-aging performance is better than high density polyethylene about 1/4, buried for 50 years, its mechanical properties only decreased by 20%.
⑦ Stress resistance and fatigue resistance
The environmental stress cracking resistance >4000h, the elastic modulus is more than 1.5 times that of high density polyethylene (PE100), the fatigue strength > 500,000 times.
  serial number
project
performance requirement
test method
1
Molecular weight, 104
≥100
ASTMD1601
2
Density, g/cm³
≥0.930
GB/T1033.1
3
moisture content  mg/kg
≤150
GB/T6283
4
distortion temperature  °C
≥60
GB/T1634.1
5
charpy impact strength  kJ/m²
≥80
GB/T1043.1
6
  tensile breaking strength  MPa
≥24
GB/T1040.2
7
elongation at break %
≥300
GB/T1040.2
8
Induction time of oxidation (200°C), min
>20
GB/T17391
9
friction coefficient
0.07~0.11
ASTMD1894
10
Wear rate of mortar
≤0.4
QB/T2668
Corrosion Resistant Large Diameter Flexible Pipe , UHMW Polyethylene Tube DN42 3
